Sewage works saves energy on filter bed application

ABB variable speed drives improve energy efficiency with payback of less than three years at a Severn Trent Water sewage treatment works.

Severn Trent Water is saving 15,000 kWh per year after installing two ABB variable speed drives at its Edwinstowe filter bed sewage treatment works in Nottinghamshire.

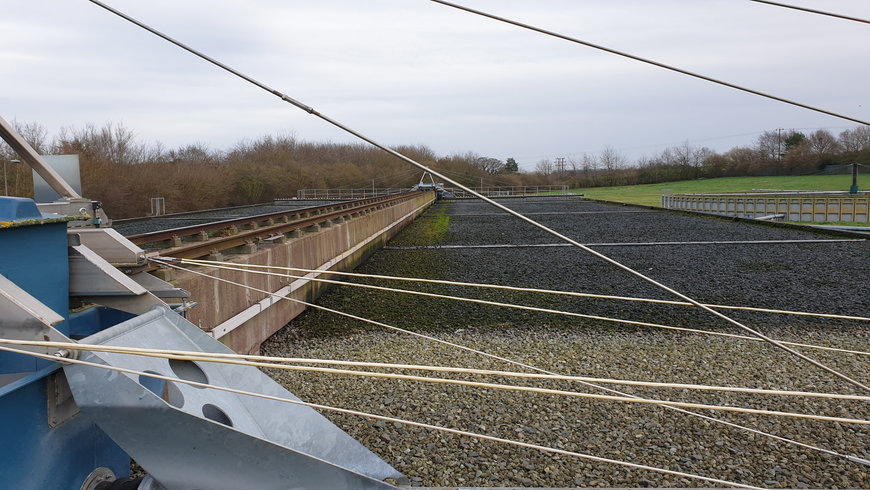

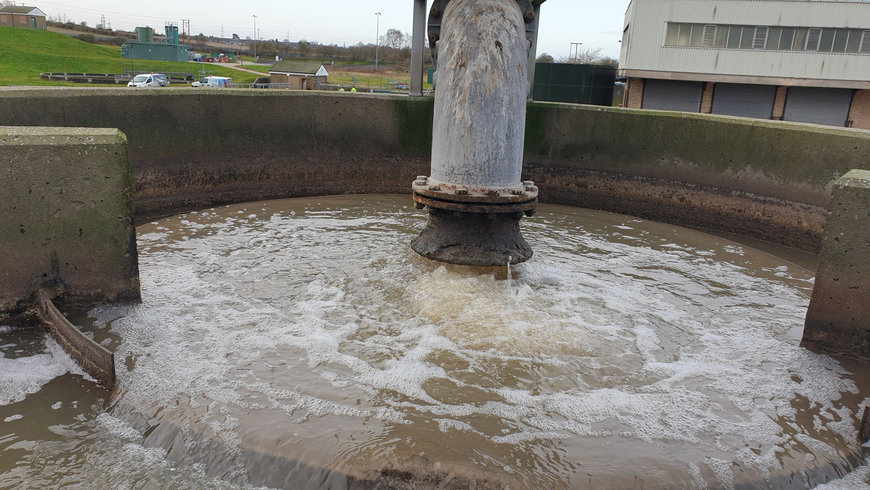

The sewage treatment works includes a stone filter bed that requires a minimum circulation flow. If the inflow to the stone filter bed drops below its 75 litres per second (l/s) minimum threshold, the bed risks drying out, killing the bacteria needed to break down the sewage. When this threshold is reached, two 9 kW fixed-speed pumps, operating in duty/ standby, recirculate water to maintain the wetting of the filter bed. However, as the pumps are constant speed, they may transfer more than the required circulation, leading to excessive energy use and high operational costs.

Inverter Drive Systems – a member of the nationwide ABB Value Provider network - suggested retrofitting an 11 kW variable speed drive (VSD) to each pump. By picking up a 4-20 mA signal from the inlet flow meter, the VSD detects when flow falls below the 75 l/s threshold and regulates the pump speed according to the sewage works’ inflow. Once flow exceeds the minimum threshold the VSD stops the pump. In addition, if the recirculation well falls below an operable level a low-level float switch sends a stop signal to prevent the pump running dry. This has resulted in energy saving of 15,000 kWh per year and a return on the investment in just under three years.



The variable speed drives ensure minimum circulation flow is maintained, and have improved efficiency, with a payback of under three years.

"The skill to identifying the energy saving is to find the fine balance between pump speed and flow rate," says IDS' managing director, Blaise Ford. "This we achieve during the commissioning process with the drives activating the pumps when the inflow drops below 75 litres per second, initially controlling them at minimum speed. If inflow to the works continues to fall, the drives control the pumps in a linear speed ramp up."

“As an investment, the variable speed drives have been an effective way to save energy and money,” says David Wood, Senior Energy Project Manager at Severn Trent Water. “We’re now looking at other sites that don’t currently use drives to see how a controlled pumping regime can reduce costs.”
