Businesses today attach the term “sustainable” to products and activities ranging from fish and furniture to energy consumption and architecture. Their stated focus is on preserving natural resources and protecting earth’s environment. In a more narrow sense, however, machining in manufacturing has always pursued a form of sustainability. Machining competitively priced, high quality products enables a manufacturer to make a profit and thereby sustain its existence as a business.
The recent initiative called sustainable machining aims at reducing raw material consumption, energy use and generation of waste throughout the product life cycle to a level that at least is in balance with the carrying capacity of our planet. Oftentimes, general discussion of sustainability concentrates on large global environmental issues but overlooks the basic elements of price, cost, customer satisfaction, process knowledge and reliability. When it comes to sustainability in machining, true success starts with simple, straightforward steps and analysis.
Every business faces the challenge of setting sustainable prices for its goods or services. The price must be high enough to cover costs and produce a profit, but low enough that it doesn’t drive customers to competitors. A manufacturer can set a higher price if the customer perceives that the product provides sufficient value for what is paid.
On the other hand, if pressure from customers and competitors results in setting the price too low, profit margins suffer. When the price is below the cost of producing the product, losses result. If competitive pressures push the price too low, those designing and machining the product have to find ways to produce it cheaper, faster and better to cut production costs and support a sustainable profit margin.
However, in many businesses the point where costs stop, and profits start is unclear. That is because the real costs themselves also are unclear. Hidden, ignored or unknown factors are not part of the cost calculation. Typical invisible costs include unplanned downtime, rejected workpieces and broken tools. These costs are not considered representative or “real.” The attitude or mindset that results in some cost factors becoming invisible is not limited to production staff; it can exist company wide.
Achieving a sustainable cost structure requires making the invisible visible. Manufacturing staff must examine and evaluate the machining process as well as the structure and flow of the organization’s activities overall to uncover hidden costs.
Customer satisfaction is a key element of economic sustainability. A customer wants to know when his or her order will arrive. Lead time, in a customer’s mind, begins when they place an order. And lead time is not exclusively production time. If machining a part involves three weeks process time, but administrative activities eventually take another two weeks, a shop must be honest with itself and its customers and state a lead time of five weeks. Metalworking equipment suppliers including Seco Tools provide tool inventory management, tool identification and machine monitoring systems that enable shop personnel to track customer jobs and maximize a shop’s ability to meet lead time goals and maintain customer satisfaction. (See sidebar)
Waste and Measurement
Efficient manufacturing minimizes wasted time, energy and raw material. Issues surrounding the waste products of machining such as chips, cutting oils and coolant are complex. Manufacturers traditionally consider the waste products as an unavoidable result of the process and believe that change is difficult to accomplish and, thus, has been minimal. The attitude in much of the machining world is “that’s how it goes, it’s just something to deal with.”
Effectively minimizing waste and preserving resources requires thorough understanding of workpiece material characteristics and machining processes. Gaining that understanding involves accurate measurement of process factors to determine exactly what is being done and what the results really are. True accuracy avoids the use of round figures; round figures usually indicate incomplete knowledge of the process at hand and hinder valid determination of results when changes are made. If a shop claims its manufacturing efficiency is “above 60 percent,” is that 61 percent or 95 percent? Both are above 60 percent. Similar, cutting speed described as “around 200 m/min” is not trustworthy information. The speed more likely will actually be 195 m/min or 206 m/min than an estimated round number.
In one case, a shop owner was convinced that his facility utilized 70 percent (round number) of the time available for machining. Careful measurement determined that actual utilization was only 34 percent. In simplified terms, among every three machines in that facility, one would be working, and the other two were idle. So, the shop owner’s undisciplined measurement (guessing) proved basically worthless.
Salary and Sustainability

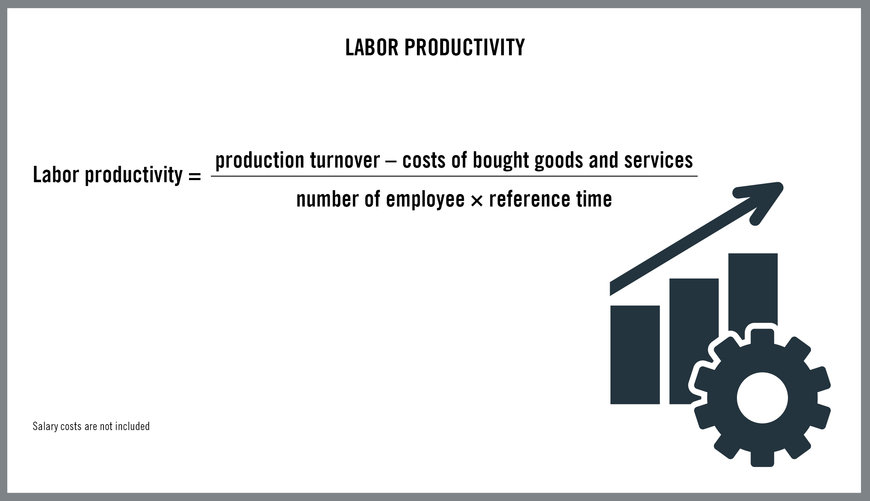

In analyzing sustainability in relation to global labor costs, assessment of labor productivity should exclude salary costs. Labor productivity equals production turnover, minus the costs of purchased goods and services, divided by the number of employees, divided by a unit of time.
This formula measures labor productivity without influence of labor costs and enables valid comparisons of labor productivity among countries or businesses with differing salary scales. The salary of a skilled machine operator in a Western nation, for instance, may be ten times that of an operator in a lower-salary country, but that difference doesn’t indicate actual productivity. It is possible that the 10 operators in a low-salary country produce fewer parts, at lower quality, than the one operator in the West.
However, if actual labor productivity (as measured above) in the lower-salary country is at the same level as the Western country, then achieving economically sustainable productivity in the Western country requires investment in innovative technology and production methods and continuing education of manufacturing staff.
High labor productivity indicates that manufacturing personnel possess thorough insight into what they are doing and have comprehensive knowledge and skills. This enables them to work faster, realize their full competence and gain higher job satisfaction. For a skilled operator, machining is frustrating when unanticipated events occur. That happens frequently in today’s high mix, low volume production scenarios as the products and small lot sizes change very quickly. However, skilled, multi-disciplined operators can rapidly adjust operations to overcome bottlenecks and other disruptive events.
A sustainable machining process is reliable and predictable and minimizes energy waste. An unreliable process results in reworked or scrapped workpieces and waste of the raw material, energy and labor used to produce the rejected work.

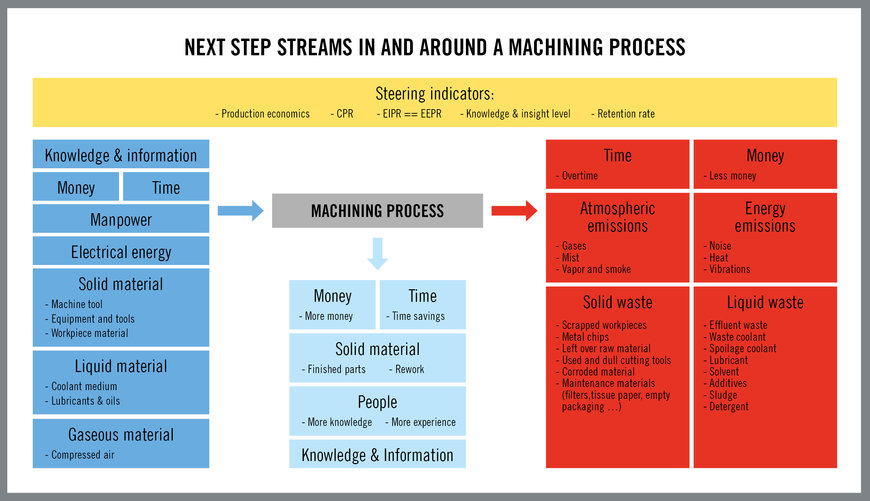

HQ_ILL_Next Step Streams In And Around A Machining Process.jpg
Similarly, from a sustainability perspective, work in process (WIP) is essentially waste. From an economic point of view, WIP represents lost money, lost time and wasted floor space. In addition, there is always the possibility that a stored semi-finished workpiece can be damaged as it moves through the logistics system. Accordingly, a shop should have as little WIP as possible.
Reducing Energy Consumption
Throughout history, manufacturing has found ways to accomplish greater results with less energy. For example, in the beginning of the 1980s many workshops had machines with 70 or more kilowatts of power. Today, milling machines with 7 kilowatts of power provide productivity that can be higher than that of those machines ten times more powerful. A sustainable machining process minimizes energy consumed per cubic mm or cubic inch of material removed. Minimizing energy consumption automatically results in less wasted energy, making machining a more environmentally friendly operation.
Figure 3 shows electrical energy consumption by a five-axis machining center for one working day. (These data were gathered from just one machine and represent a general reference.) Surprisingly, the main spindle does not consume the majority of the energy the machine uses. The main spindle and axis drive motors typically use only 30 percent of the energy, while various cooling systems employ 44 percent, and pumps, transformers, machine control and other systems consume the rest. Consequently, when the machine is not cutting, most of the machine’s other systems continue to use energy.

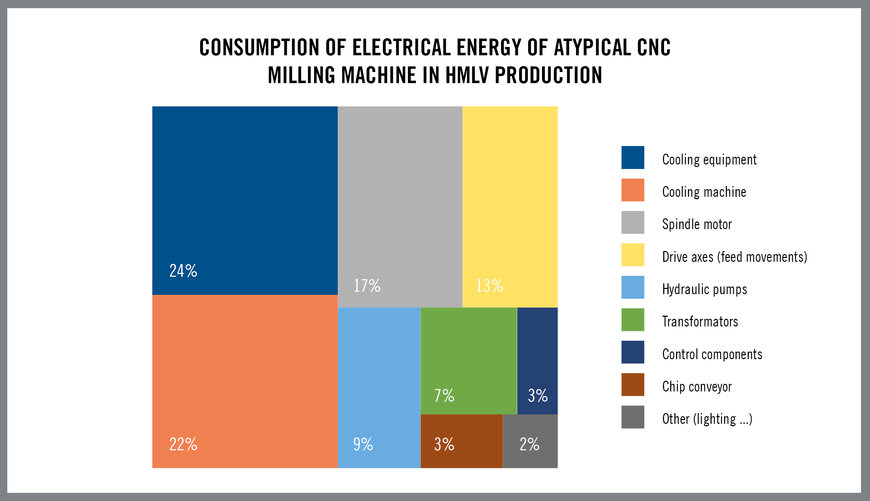

HQ_ILL_Consumption Of Electrical Energy Of Atypical CNC Milling Machine In HMLV Production.jpg
Efficient use of energy can significantly boost product output with minimal increase in overall energy usage. In one scenario, actual machining of a part takes one hour. If programming, setup and waiting time require six hours, the machine will produce two parts in an eight-hour day. When the machine is cutting, energy consumption can be considered to be 100 percent, or nominally one unit. The cutting operation uses 20 percent of the energy, so when the machine is not cutting it consumes 80 percent of an energy unit. Therefore, total energy consumption for the day is 6.8 units while the machine produces two parts.
A second scenario follows analysis of the process with special attention to eliminating wasted time. The analysis enables idle time to be reduced to 5 hours, a cutback of 16.5 percent. Now three hours of cutting time are available, permitting the production of three parts. Total energy consumption per day is 7 units, or 3 percent more than in scenario one.
Producing one workpiece in scenario one requires 3.4 energy units, while in scenario two, production of each workpiece requires 2.2 units of energy. Energy consumption per workpiece in scenario two decreases 36 percent on only a 3 percent increase in daily energy consumption. Producing three workpieces in scenario one would require the machine to run longer and consume more energy. Sustainable machining is not necessarily about consuming less energy, but it is about doing more with the energy consumed.
Manufacturers have long pursued economic sustainability through machining of competitively priced, high quality products that enable them to support and maintain their businesses. Economic sustainability consists of many components, but in general, the components are basic and straightforward. Most of all they involve realistic, honest and accurate evaluation and elimination of occasions of waste in all aspects of the production process.
In achieving economic sustainability, manufacturers deal with issues that enable them to also address and reduce the impact of their operations on the environment and achieve sustainability in the global sense.
Measurement and Sustainability
Organization and measurement of process factors and equipment constitutes a major step towards eliminating waste and achieving sustainable machining processes. To know exactly where wastes of time and energy occur, shop personnel need to work with definite numbers and facts rather than speculation and round-number estimates.
At the most basic level, manufacturing personnel must know what tools are available and where the tools are in the manufacturing facility. When that information is not available, shop staffs begin to guess, make assumptions and wander about in search of the tools. The situation can be described as the workshop safari. Staff members know the tools are in the shop, but don’t know exactly where they are.
Seco Tools provides tool identification and management systems aimed at eliminating the workshop safari. Seco Inventory Management System, for example, is a versatile, industry-grade vending system that can be fully networked to a facility’s production flow. After being configured with a facility’s specific tooling needs, Inventory Management automatically provides comprehensive reporting to track tool usage and spot irregularities that may indicate problems.
It also is critical to correctly identify tools as they move through the production process. Visual and tactile identification may be insufficient when numerous similar-appearing tools are involved. Seco Tools has partnered with IDEM to offer a digital tool identification system to provide a system that employs radio frequency identification (RFID) tags and a Bluetooth tag reader. The system enables operators to immediately connect with a database of over 900,000 tools via a native IOS or Android application. Comprehensive information includes tool specifications and tool history management as well as other features such as group communication capability for sharing comments and project details among multiple participants. Shop personnel can also use the same RFID technology to identify measuring tools and other shop items.
Real-time machine monitoring supports economic sustainability in that it enables continual tracking of machining processes. Regarding the customer satisfaction element of economic sustainability, monitoring gives shop personnel the ability to immediately tell a customer where his or her order is in the production process and when it will be delivered.
For Seco Machine Monitoring, Seco Tools has partnered with MachineMetrics, a provider of Industrial Internet of Things (IIoT) machine platforms. Machine Monitoring facilitates Ethernet, wifi and cellular communication while connecting directly to machine tool PLCs and controls. Digital and analog I/O is configured and managed through a web interface. The cloud-based system is easy to use, completely customizable, and fast to install. The system captures machining data and provides manufacturing analytics that help users learn about their operations and improve machine tool utilization and capacity. It also enables interaction with Seco cutting tool information database and experience so that users can improve their processes and fully utilize data regarding tool life, speed and feed optimization and tool breakage.

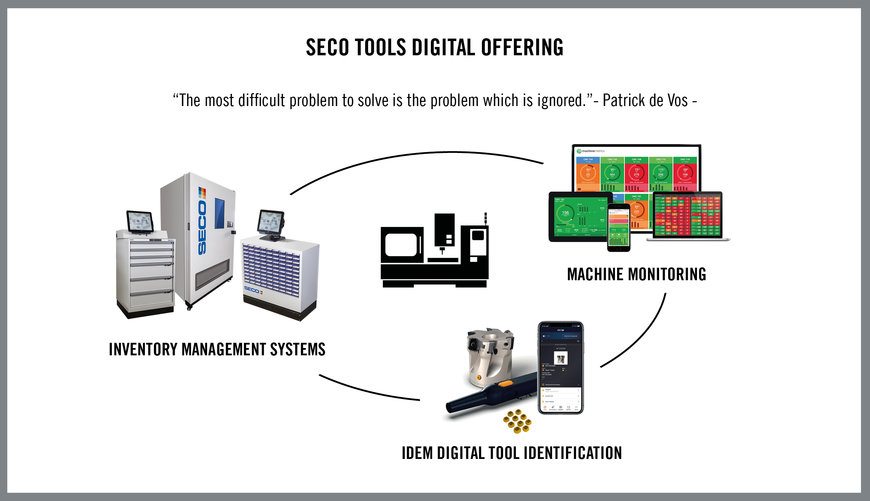

HQ_ILL_Seco Tools Digital Offering.jpg
Patrick de Vos, Business Development Manager & Technical Education Manager Seco Consultancy
