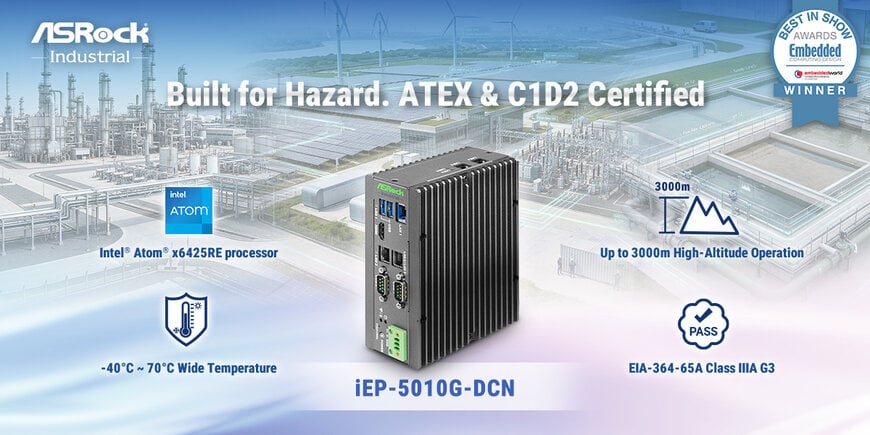

ASRock Industrial iEP-5010G-DCN Controller for Hazardous Industrial Environments
ASRock Industrial introduces the iEP-5010G-DCN edge controller with ATEX Zone 2 and UL C1D2 certifications for volatile and corrosive industrial settings.
www.asrockind.com
The iEP-5010G-DCN is built on the Intel Atom x6425RE processor, an architecture specifically selected for industrial automation and real-time field monitoring. This platform supports up to 32GB of DDR4 3200MHz SO-DIMM memory featuring In-band ECC. The inclusion of error-correcting code memory is a critical technical requirement for maintaining data integrity in edge-level analytics and control logic execution, where system downtime or data corruption can lead to operational failures. The hardware is designed for long-term lifecycle support, ensuring consistency for machine coordination and distributed control system workloads in heavy industrial sectors.
Hazardous Location Compliance and Environmental Protection
A primary feature of the iEP-5010G-DCN is its certification for ATEX Zone 2 and UL Class I Division 2 environments. These ratings allow the controller to be deployed in areas where explosive gases or combustible vapors are present, such as oil and gas facilities, chemical refineries, and mining operations. By enabling installation directly within Zone 2 areas, the system reduces the necessity for long-distance wiring to non-classified control rooms, which minimizes signal degradation and improves response times for localized process control. To address atmospheric threats, the device includes conformal coating protection tested to EIA-364-65A Class IIIA standards, providing resistance against G3-level corrosion in harsh environments.
Industrial Connectivity and Communication Standards
The controller integrates five Intel LAN ports, consisting of one 2.5GbE and four 1GbE connections. These ports support Intel Time Coordinated Computing (TCC) and Time-Sensitive Networking (TSN), which are essential for synchronized real-time communication across distributed networks. For peripheral integration, the system includes two RS-232/422/485 serial ports, two USB 3.2 Gen2 ports, and an HDMI 2.0b output. Local data storage is managed via an M.2 2280 Key M slot supporting PCIe Gen3 x2 NVMe SSDs, providing the high-speed access required for intensive industrial data acquisition.
Ruggedized Design and Power Management
The mechanical design of the iEP-5010G-DCN focuses on thermal efficiency and physical resilience. The fanless chassis measures 58mm x 125mm x 157mm and is compatible with DIN-rail or wall mounting in standard industrial enclosures. It maintains operational stability across a temperature range from -40°C to 70°C and is rated for altitudes up to 3,000 meters. To manage electrical fluctuations common in field deployments, the system accepts a wide-range 6-36V DC power input. This input is reinforced with over-voltage, under-voltage, over-current, and 80V surge protection, ensuring that the edge controller remains functional despite the electrical noise and instability often found in heavy industrial power grids.
Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.
