Aavid Thermalloy

Rugged, convex or concave contact surface? Components with different heights? Aavid Fillers bridge the gap.

Proliferation of electronic devices has been accompanied by the steady shrinking of their dimensions, so engineers are constantly under pressure to design more power into a smaller space and are often faced with added complications because tolerances between the hot components and cold surfaces which can be ±20 % or greater.

Rugged, convex or concave contact surface? Components with different heights?  Aavid Fillers bridge the gap.

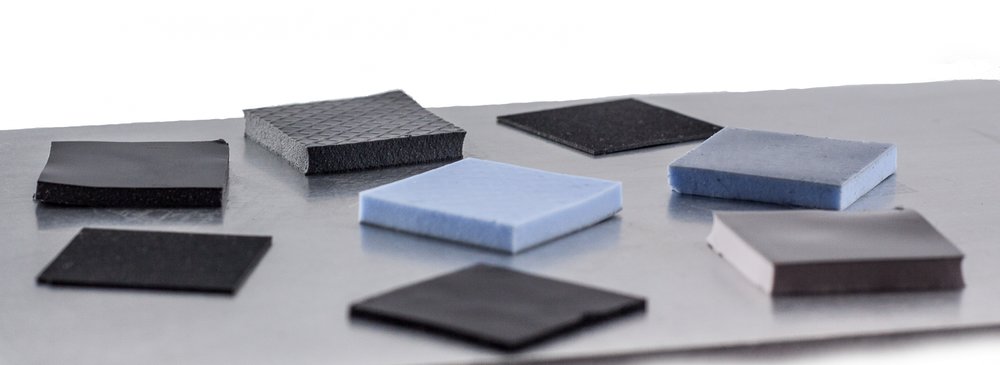

Gap Filler (http://aavid.eu/product-group/interface/gap-filler)

All gap fillers are RoHS and REACH compliant, halogen free and free for environmentally hazardous substances; they work in an operating temperature range from -40°C to 150°C and are available in 1, 2 or 3 mm thickness. They are puncture, shear and tear resistant.

Superthermal high conductivity thermal gap filling pads use a proprietary fibre orientation technology to deliver the high conductivity of carbon fibre without sacrificing the flexibility and adhesion capabilities of a polymer. Thermal conductivity ranges from 7.2 to 13.2 W/mK. They are ideal for CPUs, GPUs and high density LEDs.

SoftFlex series is the most flexible and diverse line of thermal conductive pads. The compressibility and adhesion features enable a dramatic reduction in thermal resistance with mounting, providing exceptional contouring and excellent cushioning performance thus reducing overall stress to the PCB and eliminating tolerances having a breakdown voltage ≥10 (kVAC).

Waveblocker
has a high electromagnetic wave permeability allowing it to absorb EM wave interference. Its EM absorbing capacity ranges from 10MHz to several GHz. Due to this unique feature, Aavid WaveBlocker pads are ideal for negating problems associated with the noise of EM waves and heat radiation.
