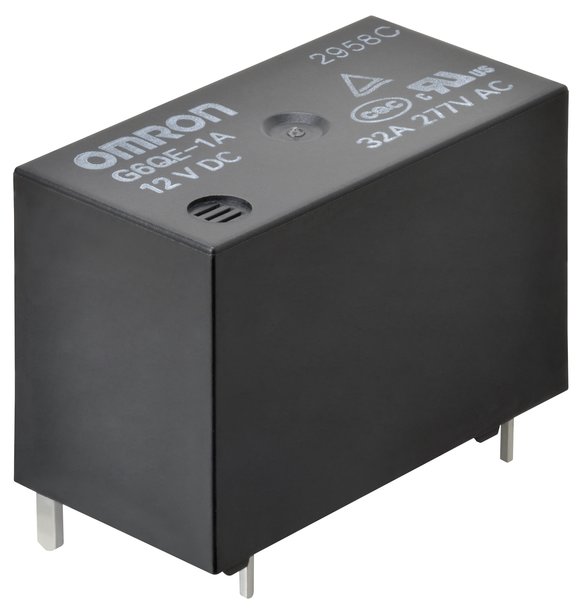

For shorter EV charging times: Omron's single-pole miniature power relays of the G6Q series at Rutronik

Omron's G6Q series features compact size, high robustness and stability.

For shorter EV charging times: Omron's single-pole miniature power relays of the G6Q series at Rutronik

Flat dimensions with high switching current: the G6Q relays impress with their robustness and stability in the smallest of spaces. As the replacement of the Omron G8P, they come smaller with the same footprint. With a switching current of 36 A @ 250 VAC, 10,000 switching operations are possible, and with 30 A @ 250 VAC even 100,000. The main area of application is the AC safety shutdown in EV chargers with high output power, which is needed for shorter charging times. They are also used in other safety-related applications such as ground and air heat pumps, lifts and lifts, and ventilation and temperature controllers. The G6Q series relays are available at www.rutronik24.com.

By reducing the voltage applied to the coil after the nominal voltage has been applied for 100 ms of relay operation, the current consumption is reduced to a low twelve percent compared to the nominal consumption of the coil, and thus to 35 percent of the nominal voltage of the coil.

The monostable relays are available with a coil voltage of 12 V and a coil resistance of 102.9 Ω, as well as 24 V voltage and 411.4 Ω resistance.

Other features:
• 10 kV impulse withstand voltage (between coil and contacts)
• Operating ambient temperature 85 °C
• Complies with cULus, EN and CQC requirements

For more information about G6Q series from Omron and a direct ordering option, please visit our e-commerce platform at: www.rutronik24.de
