1250°F INERT ATMOSPHERE OVEN FROM GRIEVE

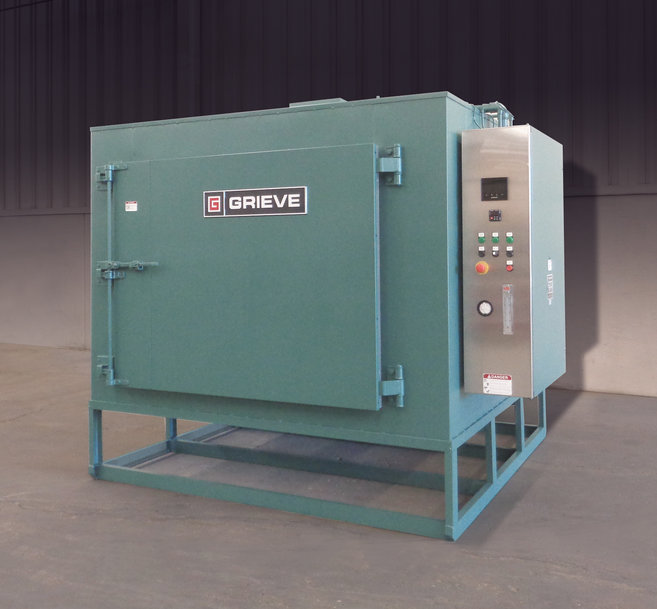

This Grieve oven is a 1250°F (667°C) inert atmosphere oven, currently used for heat treating firearms components at the customer’s facility.

1250°F INERT ATMOSPHERE OVEN FROM GRIEVE

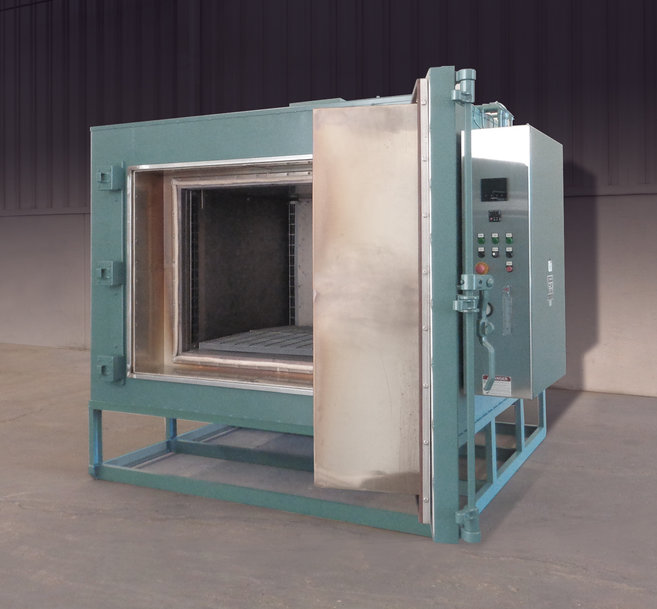

Workspace dimensions of this oven measure 48” W x 48” D x 36” H. 30 KW are installed in Incoloy sheathed tubular heating elements, while a 1400 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the workload. Inert atmosphere ovens protect parts from oxidation using any non-flammable gas such as nitrogen, argon or carbon dioxide.

This Grieve inert atmosphere oven features 12” insulated walls, all interior seams welded gas-tight, an air jacket on the inner oven for cooling, 16” high integral oven stand, 16-gauge 304 stainless steel interior and enamel-painted aluminized steel exterior. The oven is reinforced for 2000 lb. loads, allowing the customer’s part rack to sit on the oven work space floor.


1250°F INERT ATMOSPHERE OVEN FROM GRIEVE

The oven meets all requirements for inert atmosphere construction, including those in NFPA 86, FM and OSHA standards.

Controls on this Grieve oven include a programmable temperature controller with data logging, capability, 975 CFM cooling blower with air flow safety switch and automatic purge solenoid. An inert atmosphere inlet (1/2” NPT) with pressure regulator maintains positive pressure within the oven.
