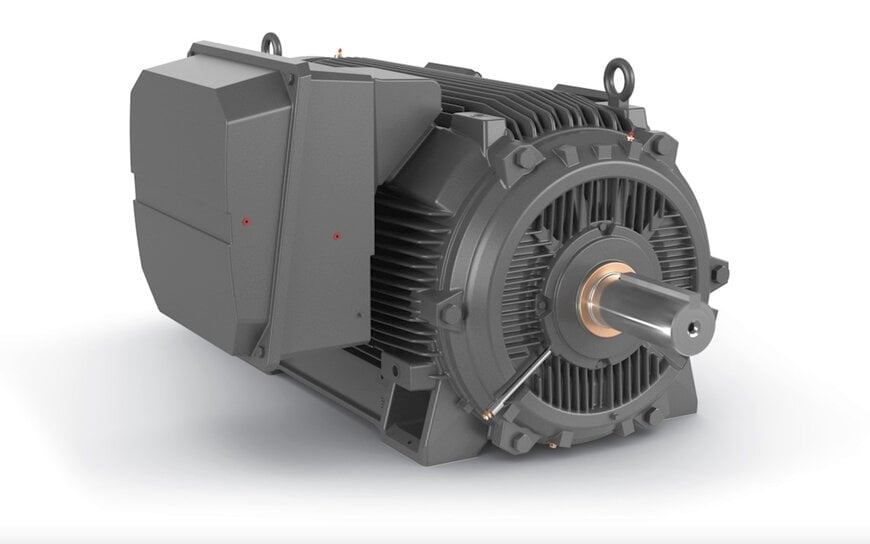

SD200 841 offers more power for severe-duty processes
ABB introduces larger NEMA 5000 series frame sizes to its SD200 841 low-voltage motor platform to deliver full IEEE 841-2021 compliant power up to 500 horsepower.
global.abb
ABB has expanded its SD200 841 severe-duty electric motor family to a maximum output of 500 horsepower. The introduction incorporates larger NEMA 5000 series frame sizes, specifically covering frames 5009 through 5013, extending the product spectrum beyond the previous 449T frame constraint to address high-capacity industrial assets operating in demanding environments. The entire expanded portfolio maintains adherence to the established IEEE 841-2021 engineering standards for premium-efficiency, severe-duty horizontal and vertical squirrel-cage induction machinery.
Environmental Ingress and Thermal Specifications
The mechanical design features IP56-rated environmental protection to safeguard internal assemblies against heavy moisture and particulate contamination in wet or fouled operational settings. Thermal management is supported by a Class H insulation system, which provides elevated thermal capacity to preserve winding integrity during extended operation in high-ambient temperature applications. To minimize unplanned servicing intervals and block external contaminants, bearing isolators are installed on both the drive and non-drive shaft ends.
The dynamic balance configurations limit baseline operation vibration levels to 0.06 inches per second, supporting rotational consistency under high-torque load configurations. ABB validates each unit by shipping it with an official IEEE 841 compliance test report, accompanied by a five-year factory warranty. Safety and hazardous-area deployment compliance is verified through UR component recognition alongside CSA listings certifying safe operation within Class I, Division 2 and Class II, Division 2 explosive atmospheres.
Mechanical Interfacing and Structural Enhancements
Installation, electrical termination, and routine maintenance access are assisted by an oversized conduit box featuring a field-modifiable layout. As a standard engineering feature replacing traditional flying leads, the 5000 series frame motors incorporate factory-installed terminal blocks. This structural change elevates terminal connection reliability, limits installation errors, and establishes more direct hardware access for maintenance personnel.
Target Process Applications and Standardization
The SD200 841 FS500 configuration is developed for process machinery in petroleum and chemical refineries, pulp and paper processing mills, mining and aggregate extractions, cement manufacturing plants, and heavy-duty industrial fluid pumping and materials conveying networks. The increased power window allows operations engineering teams to standardize plant assets around a uniform IEEE 841 equipment platform across wide-ranging machine tiers, stabilizing maintenance reliability protocols and extending operational life as target asset horsepower requirements increase.
Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.
The expansion of standard IEEE 841 compliant platforms up to 500 horsepower reflects a competitive alignment among global industrial powertrain options. The market for severe-duty processing motors has historically segmented large-horsepower applications into custom-engineered frames rather than standard product lines.
- W22 IEEE 841 Motor Series: This product series competes directly in the 500 horsepower severe-duty category utilizing a cast-iron platform, targeting identical applications in petrochemical and pulp processing. For comparative benchmarking, the W22 platform specifies a standard peak vibration threshold of 0.04 inches per second or less, which sits slightly lower than the 0.06 inches per second benchmark of the SD200 841 motor line. However, the standard W22 architecture provides an L-10 bearing life of 50,000 hours, dual-ended non-contacting isolators, and an insulated non-drive end bearing housing as standard on large frames to combat circulating shaft currents induced by variable frequency drives.
- 841 PLUS Motor Line: This alternative severe-duty product line relies on low-loss silicon steel construction and a streamlined thermal design to operate at lower internal temperatures. While the standard cataloged stock variations of the 841 PLUS line primarily concentrate on frames spanning 143T through 447T (ranging up to 200 horsepower), custom-configured models scale up to meet higher NEMA 5000 specifications. The 841 PLUS architecture leverages a baseline precision balance filtering vibration below 0.05 inches per second and employs a pulse-resistant magnet wire insulation system designed to withstand high-voltage transient spikes in accordance with NEMA MG-1 Part 31 guidelines.
A core field differentiator between these large-frame product lines is the mechanical terminal interface. While alternative large-frame products frequently employ flexible flying leads requiring manual crimping, splicing, and tape insulation inside the terminal box, the standard integration of factory-installed solid terminal blocks on the SD200 841 FS500 frame represents a modern trend toward reducing human error and boosting reliability during field connection.
